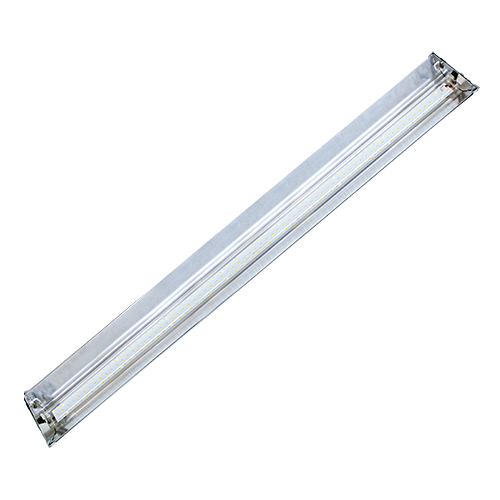

Maat is the galvanized steel sheet industrial luminaire, professional and powerful. With long working life, low energy consumption and high lighting performance, it is optimal for areas where access to maintenance and service of luminaries is difficult, namely logistic centers, warehouses, large stores, production halls, sports facilities, garages, supermarkets, etc.
It is for easy replacement of fluorescent tube lighting from 2 x 36W double tube fluorescent lamp; 2x58W double tube fluorescent lamp.
It is optimal for areas where access to maintenance and service of luminaries is difficult and/or involves costly interruptions to daily operations.
● Standard Lumen Version
Model | Power | 3000K | 4000K | 5000K | Lumen Tolerance |
110 lm/W | 115 lm/W | 120 lm/W | |||
M1200 | 60W | 6810 lm | 6940 lm | 7050 lm | ±10% |
● High Lumen Version
Model | Power | 3000K | 4000K | 5000K | Lumen Tolerance |
135 lm/W | 140 lm/W | 145 lm/W | |||
M1200 | 60W | 8220 lm | 8400 lm | 8580 lm | ±10% |
LED Type: SMD2835
Lumen above is based on standard basic on/off version. For other functions, lumen may be different.
| Input Voltage | CRI | Power Factor | SDCM | Beam Angle | Operation Temp. | IP/IK | Fitting Material | Class |
|---|---|---|---|---|---|---|---|---|
| 220~240VAC | >80 | >0.9 | 3 | 100° | -20℃ ~ +40℃ | IP23 | Alu-zinc & Iron Housing + PC Diffuser | I |
| Standard Lifespan | Premium Lifespan | Standard | Emergency Lumen | Battery |
|---|---|---|---|---|
| L70B50: 50,000h | L70B50: 125,000h / L80B10: 65,000h | EN60598-2-1 / EN55015 / EN62778 | N/A | N/A |
Maat is the galvanized steel sheet industrial luminaire, professional and powerful. With long working life, low energy consumption and high lighting performance, it is optimal for areas where access to maintenance and service of luminaries is difficult, namely logistic centers, warehouses, large stores, production halls, sports facilities, garages, supermarkets, etc.
It is for easy replacement of fluorescent tube lighting from 2 x 36W bi-tube fluorescent light; 2x58W bi-tube fluorescent light.
It is optimal for areas where access to maintenance and service of luminaries is difficult and/or involves costly interruptions to daily operations.
