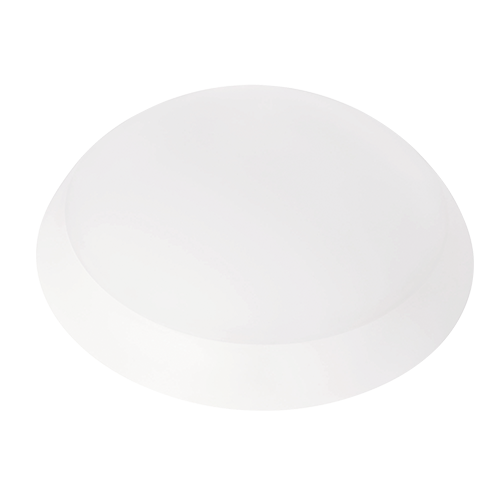

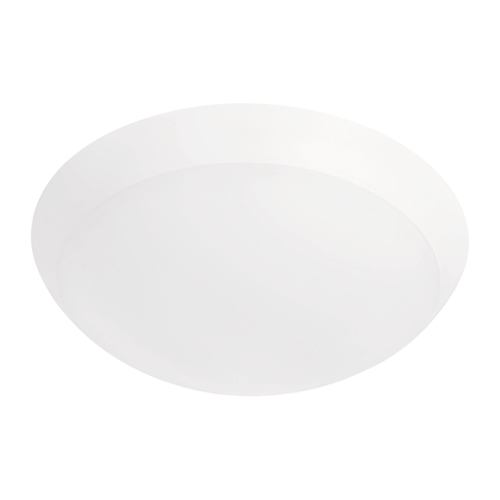

Athos is a modern circular PC luminaire with anti-ligature feature. It is an ideal reinforcement for hallways, stairwells, corridors, walkways, covered car parks and garages, technical rooms, balconies and terraces.
Model | Power | 3000K | 4000K | 5000K | Lumen Tolerance |
95 lm/W | 100 lm/W | 105 lm/W | |||
A340 | 15W | 1425 lm | 1500 lm | 1530 lm | ±10% |
A340 | 22W | 1980 lm | 2090 lm | 2134 lm | ±10% |
LED Type: SMD2835
Lumen above is based on standard basic on/off version. For other functions, lumen may be different.
| Input Voltage | CRI | Power Factor | SDCM | Beam Angle | Operation Temp. | IP/IK | Fitting Material | Class |
|---|---|---|---|---|---|---|---|---|
| 220-240VAC | >80 | >0.9 | 3 | 120° | -20°C~+40°C | IP65/IK10 | Polycarbonate | II |
| Standard Lifespan | Premium Lifespan | Standard | Emergency Lumen | Battery |
|---|---|---|---|---|
| L70B50: 50,000h | L70B50: 125,000h / L80B10: 65,000h | EN60598-2-1 / EN55015 / EN62778 / EN60598-2-22 | 200lm~400lm | 3h Duration |
