Scorpio
LS-N / LS-M / LS-W / LSD-M

Scorpio creates a new trend of track lighting. The modular system is uniquely versatile in its optics, lumen packages and length. Interchangeable linear lighting sources with diversified optics, in addition to its flexibility on lengths / power / phase / CCT, plus slidable & rotatable in-track driver compatible with the most brands track rail in the world.

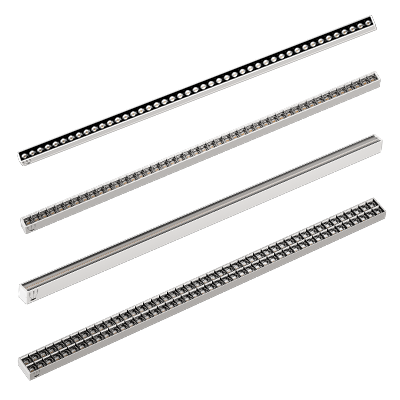

Scorpio Series - 500 x 500 px
Scorpio LS-N - 500 x 500 px
Scorpio LS-M - 500 x 500 px
Scorpio LS-W - 500 x 500 px
Scorpio LSD-M - 500 x 500 px
Scorpio with track 1 - 500 x 500 px
Scorpio with track 2 - 500 x 500 px
  • Download
  • Line Drawing
  • Power & Lumen
  • Certificate & Standard

  Spec Sheet for Scorpio LS-N / LS-M / LS-W / LSD-M.pdf




  Technical Files for LS-N 1200 32W CCT 3000K.zip


  Technical Files for LS-N 1200 32W CCT 4000K (3000K+5000K).zip


  Technical Files for LS-N 1200 32W CCT 5000K.zip



  Technical Files for LS-M 1200 32W CCT 3000K.zip


  Technical Files for LS-M 1200 32W CCT 4000K (3000K+5000K).zip


  Technical Files for LS-M 1200 32W CCT 5000K.zip



  Technical Files for LS-W 1200 32W CCT 4000K (3000K+5000K).zip



  Technical Files for LSD-M 1200 60W CCT 3000K.zip


  Technical Files for LSD-M 1200 60W CCT 4000K (3000K+5000K).zip


  Technical Files for LSD-M 1200 60W CCT 5000K.zip


  Technical Files for LSD-M 1200 68W 4000K.zip


Scorpio Dimension.png


     Model

     UGR

     Power

3000K

4000K

5000K

Lumen

     Tolerance

     105 lm/W

     110 lm/W

     115 lm/W

Scorpio LS-N - 500 x 500 px_1711129135373234.png

LS-N

<16

16W

1680 lm

1760 lm

1840 lm

±10%

20W

2100 lm

2200 lm

2300 lm

±10%

32W

3360 lm

3520 lm

3680 lm

±10%

36W

3780 lm

3960 lm

4140 lm

±10%



     Model

     UGR

     Power

3000K

4000K

5000K

Lumen

     Tolerance

     155 lm/W

     160 lm/W

     165 lm/W

Scorpio LS-M - 500 x 500 px.png

LS-M

<19

16W

2480 lm

2560 lm

2640 lm

±10%

20W

3100 lm

3200 lm

3300 lm

±10%

32W

4960 lm

5120 lm

5280 lm

±10%

36W

5580 lm

5760 lm

5940 lm

±10%



     Model

     UGR

     Power

3000K

4000K

5000K

Lumen

     Tolerance

     125 lm/W

     130 lm/W

     135 lm/W

Scorpio LS-W - 500 x 500 px.png

LS-W

<19

32W

4000 lm

4160 lm

4320 lm

±10%



     Model

     UGR

     Power

3000K

4000K

5000K

Lumen

     Tolerance

     160 lm/W

     165 lm/W

     168 lm/W

Scorpio LSD-M - 500 x 500 px.png

LSD-M

<19

30W

4800 lm

4950 lm

5040 lm

±10%

45W

7200 lm

7425 lm

7560 lm

±10%

60W

N/A

N/A

N/A

±10%

68W

10880 lm

11000 lm

11424 lm

±10%



LED Type: SMD2835

Lumen above is based on standard basic on/off version. For other functions, lumen may be different.


Input Voltage CRI Power Factor SDCM Beam Angle Operation Temp. IP/IK Fitting Material Class
220~240VAC >80 >0.9 3 50° / 60° / 70° / 90° / Single Asymmetric 30° / Double Asymmetric 30° -20℃~+40℃ IP20 Cast Aluminum I
Standard Lifespan Premium Lifespan Standard Emergency Lumen Battery
N/A N/A EN60598-2-1 / EN55015 / EN62778 / EN60598-2-22 200lm~400lm 3h Duration

What you can customize

Lable / Box Higher Lumen Output Colour Temperature Selectable Power Selectable LED Brand Driver / Sensor Brand Higher Glow-wire Test Colour

Scorpio creates a new trend of track lighting. The modular system is uniquely versatile in its optics, lumen packages and length. Interchangeable linear lighting sources with diversified optics, in addition to its flexibility on lengths / power / phase / CCT, plus slidable & rotatable in-track driver compatible with the most brands track rail in the world.
