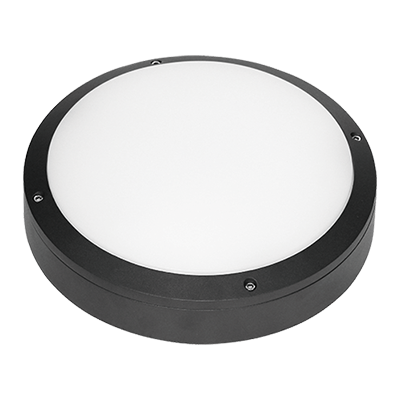

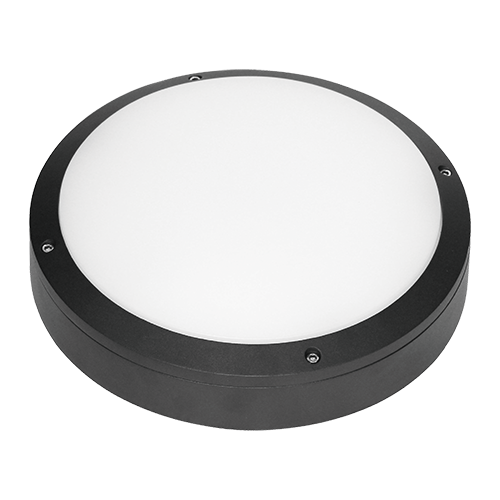

Acis AA275 / AA350

Acis is a stylish cast aluminum luminarie, with a modern look and low height. The luminaire can be delivered in several colors and with multiple rings, which gives different visual expression. It can be used as facade lighting and common areas in housing and profession.

网站产品尺寸图_10 Acis.png

     Model

     Power

     Ring Option

3000K

4000K

5000K

Lumen

     Tolerance

     95 lm/W

     100 lm/W

     105 lm/W

AA275

18W

     Standard / Cross / Grill

1890 lm

1920 lm

1960 lm

±10%

12W

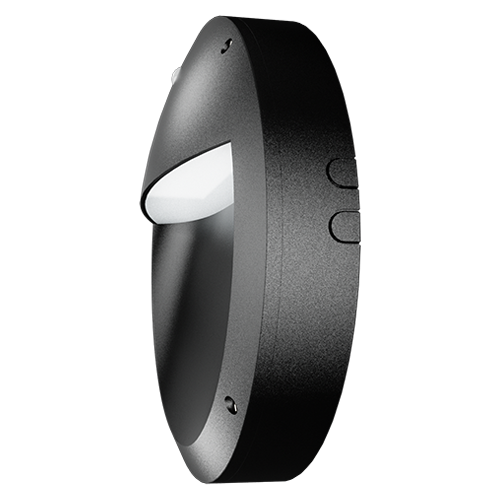

Eyelid

810 lm

840 lm

860 lm

±10%

AA350

28W

Standard

2400 lm

2520 lm

2600 lm

±10%


LED Type: SMD2835

Lumen above is based on standard basic version. For other functions, lumen may be different.

配光曲线图_10 Acis.png

Acis Installation_画板 1 副本 3.png

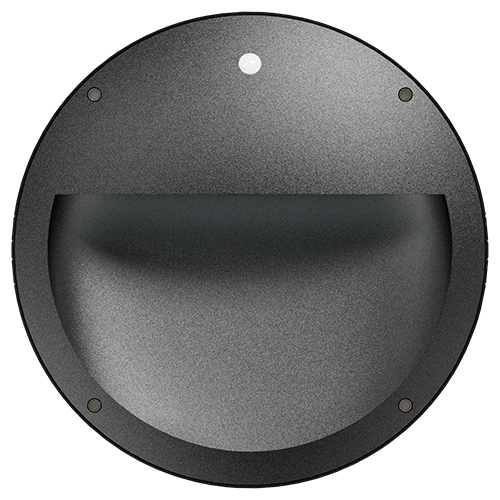

Eyelid

Cross

Grill


认证图标_画板 1 副本 6.png

Input Voltage CRI Power Factor SDCM Beam Angle Operation Temp. IP/IK Fitting Material Class
220~240VAC >80 >0.9 3 110° -20℃~+40℃ IP65/IK10 Cast Aluminum I
Standard Lifespan Premium Lifespan Standard Emergency Lumen Battery
L70B50: 50,000h L70B50: 125,000h / L80B10: 65,000h EN60598-2-1 / EN55015 / EN62778 / EN60598-2-22 200lm~400lm 3h Duration

What you can customize

Lable / Box Higher Lumen Output Colour Temperature Selectable Power Selectable LED Brand Driver / Sensor Brand Higher Glow-wire Test Anti-UV Housing Colour

Acis is a stylish cast aluminum luminarie, with a modern look and low height. The luminaire can be delivered in several colors and with multiple rings, which gives different visual expression. It can be used as facade lighting and common areas in housing and profession.
